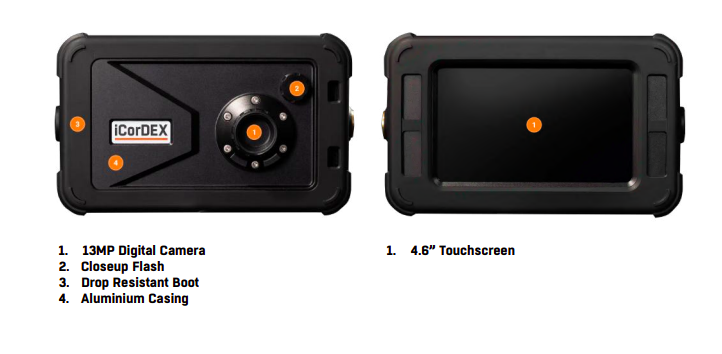

The DCx13-3 represents a significant step forward in ATEX certified digital camera technology. Incorporating a custom designed hardware running Android™ OS, the intrinsically secure DCx13-3 provides high quality image capture in potentially hazardous (explosive) atmospheres whilst protecting your sites safety & integrity. Parallel operating modes allow image capture with gloves and in harsh conditions using traditional pushbuttons with camera settings and functionality provided by the large 116mm (4.6”) touchscreen. Battery charging and image download is performed via a high speed, intrinsically secure USB link which prevents wireless related data security breaches.
| Safety & Mechanical | |
| ATEX | II 3 G Ex nR IIC T6 Gc and II 3 D Ex tc IIIC T85°C Dc |
| Tamb | |
| Ingress Protection | 54 |
| Dimensions | 160mm (6.3”) x 97mm (3.8”) x 30mm (1.2”) (excluding lens turret) |
| Weight | 650g/1.4lb |
| Lanyard Points | Yes (twin) |
| Imaging | |
| Resolution (still) | 13MP, 12MP, 8MP, 4MP, 3MP, 2MP, 1MP |
| Resolution (movie) | HD1080P, HD720 |
| Zoom | x8 digital |
| ISO Adjust | AUTO, 100, 200, 400, 800, 1600 |
| White Balance | YES |
| Exposure | YES |
| Countdown Timer | OFF, 2s, 5s, 10s |
| Power & Data | |
| Battery | 3.7V Lithium Ion, 2000mAh |
| Data & Charging | Intrinsically Secure USB Datalink |
| What’s Included | |
| DCx13-3 ATEX Certified Digital Camera | |
| Transport Pouch | |
| Intrinsically Secure Datalink Cable | |
| Wrist Strap | |
| Manuals | |
