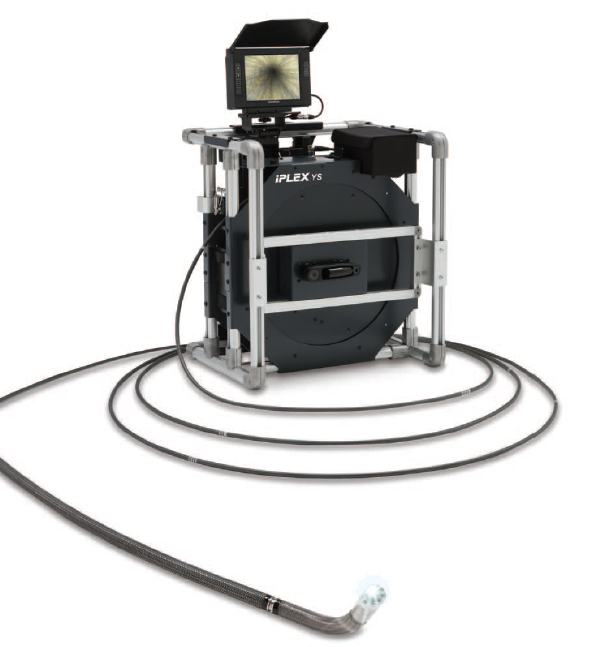

Introducing the innovativeextra-long 30 m scope, IPLEX YS. Being equipped with a range of innovative technologies, the IPLEX YS delivers unprecedented brightness and maneuverability, and dramatically improves your inspection quality.
The versatile IPLEX YS features innovative air articulation technology, letting you freely manipulate scope articulation with the compact palm-held controller. Since the insertion tube need not be fully extended, you can unroll only the length which is needed for the inspection and leave the rest neatly and safely coiled on the internal storage drum.
Insertion Tube |
|
|---|---|
| Model No. | IV88300Y |
| Scope Diameter | φ8.5 mm (0.335 in.) |
| Scope Length | 30 m (98.4 ft) |
| Exterior | High durability tungsten braid |
| Articulation Angle | 60° (up/down/right/left) |
| Articulation Mechanics | Scope tip articulation by pneumatic pressure |
| Illumination Method | Laser diode illumination |
| Gravity Sensor | Indicating gravity directions of the scope tip |
| Temperature Sensor | 2-stage indicator for high temperature warning |

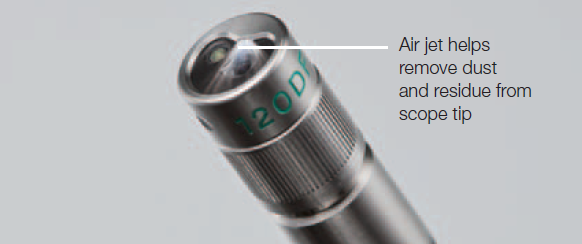

| Lens Cleaning Function | Cleaning fine drip and dust on the scope tip by blowing air |
Main Unit |
|
| Dimensions (W x H x D) | 472 mm x 522 mm x 380 mm (18.58 in. x 20.55 in. x 14.96 in.) |
| System Weight | Approximately 26 kg (57.3 lb) |
| LCD Monitor | 6.5 in. daylight-view LCD, anti-reflective type |
| Power Supply |
Removable battery: 14.8 V nominal, 120-minute operating time AC power: 100 V to 240 V, 50/60 Hz (with supplied AC adaptor) |
| Air Gas Provision Method | Compact CO2 cartridge or air compressor |
| Hardware Connectors |
Video Output: S-Video, Composite BNC Audio Input: External microphone, 3.5 mm mono jack Auxiliary Connector: Two-way communication connector USB: One USB connector |
Software Controls |
|
| Image Controls | 3X digital zoom, 9 step digital brightness control, 5 step contrast adjustment for frozen and retrieved images |
| Adjustable Gain Control | 4 step adjustable gain control with exclusive WiDER™ brightness level balancing technology |
| Exposure Control | Adjustable CCD exposure time. PAL: 20 ms to 500 ms, NTSC: 17 ms to 500 ms |
| Color Enhancement | Monochrome mode or Color Emphasis of red, blue or all primary colors |
Recording Management Functions |
|
| Recording Media | Compact Flash card (1GB standard, compatible with recommended Compact Flash cards up to 4GB). USB Flash Drive recommended. |
| Internal Memory | 1GB standard |
| Overlay | 30-character title with date, time and system settings. ImageNotepad™ allows up to 10 descriptions to be added to an image, displayed by categories and contents. |
| Thumbnail Images | Recorded images can be displayed as thumbnails |
| Still Image Recording |
Resolution (pixel): NTSC: 640 x 480, PAL: 768 x 576 Recording Format: JPEG – Super high quality, high quality, standard quality; TIFF – Uncompressed (for Stereo Tip Adaptors only) |
| Video Recording |
Resolution (pixel): NTSC: 320 x 240 / 640 x 480, PAL: 384 x 288 / 768 x 576 Recording Format: AVI format, Motion JPEG compression, Windows Media Player compatible |
| Audio Recording | WAV format, 60 sec max. |
Operating Environment |
|
| Operating Temperature |
Insertion Tube: In air: -25 °C to 100 °C (-13 °F to 212 °F); In water: 10 °C to 30 °C (50 °F to 86 °F) Parts other than above: In air: -10 °C to 40 °C (14 °F to 104 °F) |
| Relative Humidity | All parts: 15% to 90% |
| Liquid Resistance | All parts: Operable when exposed to machine oil, light oil or 5% saline solution. |
| Waterproofing |
Insertion Tube: Operable underwater up to a water pressure equivalent to a depth of 30 m. Not operable underwater with stereo measurement tip adaptors. Remote controller and LCD monitor: Operable in rain. Not operable underwater. Parts other than above: Neither waterproof nor rain-proof |
