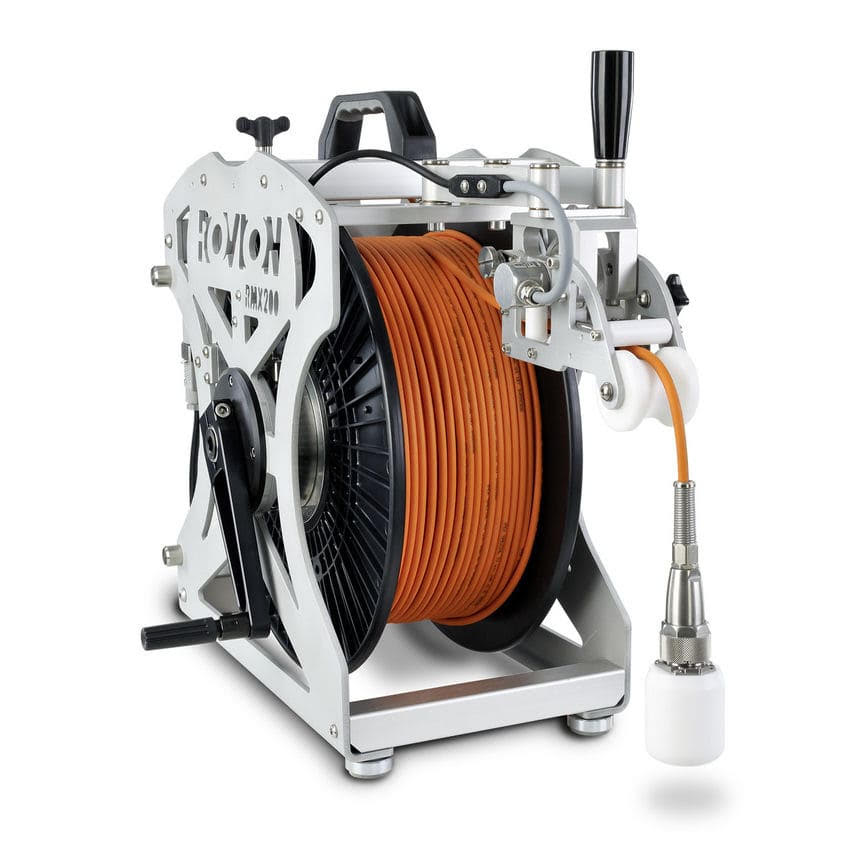

iPEK RMX200

iPEK RMX200

The cable reel holds max 200 m of armored camera cable and offers winding support that the camera cable is wound up quick and clean to the cablereel. Additionally, you can mount your operating panel to the optional telescope bar during an inspection.

Features
Technical data — RMX200
DriveManually
Cable lengthMax. 200 m
Meter counter1
Integrated deflection pulleyYes
Large deflection pulleyNo
Power supply
Voltage230 VAC / 115 VAC
Frequency50 Hz / 60 Hz
Electrical current2 A / 4 A
Fuses
Protection class
Ambient temperature range0°C – 40°C
Storage temperature range0°C – 40°C
Dimensions (L × W × H)315 × 495 × 680 mm
Weight (incl. cable)30 kg
Key features
  • Max. 200 m armored camera cable
  • Adjustable brake
  • Hand crank
  • Dirt wiper
  • Winding support
  • Telescopic bar with control panel mount
