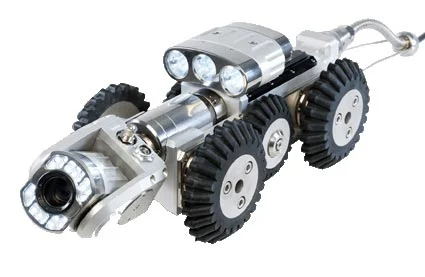

The most portable and versatile inspection crawler on the market today. It is ideally suited for many applications due to its modular design and ability to inspect inside pipes with diameters ranging from 100mm to 1000mm.
It is the smallest crawler in its class, thereby giving it the ability to pass through restricted pipe, large offsets and intruding connections. The ROVVER’s remote pendant gives you the ability to control focus, lighting and steer the crawler when obstacles or offsets are present.
The CCD Camera Head and all electronics are packaged in a compact 2 inch diameter stainless steel casing. This camera is rugged and dependable, with many hours of proven field service. The illumination ring of the camera employs 16 incandescent lamps, which are connected to the power supply independently.
Control Unit Dimensions (L x W x H) 508 x 228 x 330mm / 20” x 9” x 13”“
Weight 11.3kg / 25lbs
Camera Dimensions (D x L) 50.8 x 24.9mm / 2” x 2.16”“
Camera Casing: Impact and abrasion resistant V2A steel
Image Sensor CCD, 440,000pixels
Sensitivity 3 Lux
Resolution 460lines, horizontal
Lens f=4mm f1.2, focusable
Electrical Supply 110 VAC / 60 Hz
Cable Drum (400, 600, 900) Cable: 1/3-in. diameter, very flexible. Drum: Slip-ring cable drum
Tractor Unit Dimensions: Length 171.5mm overall, width 41.9mm, height 34.5mm
Cable 150meters. 5mm diameter
Camera 0.95” black and white / 1.18” colour
