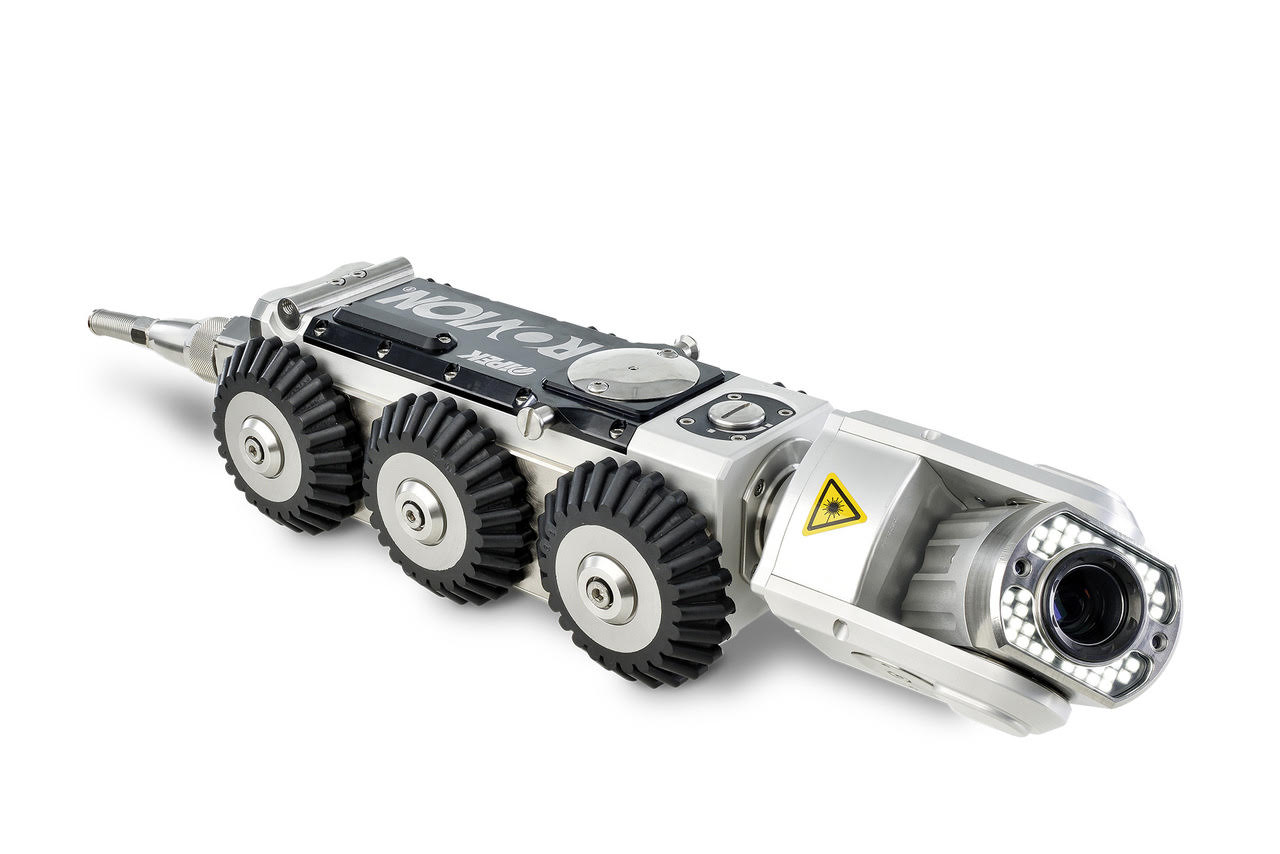

iPEK RX130

iPEK RX130

The application area of the RX130 crawler ranges from DN 150 up to DN 1000 (with elevator and carrier mounted).

Features
Technical data — RX130
Drive6-wheel drive; both sides can be controlled independently
EquipmentSteerable, backeye camera, electrically controllable clutch, location transmitter, roll & pitch sensor, pressure monitoring
Nominal pipe widthsDN150 up to DN1000 (with carrier and elevator)
Location transmission33 kHz / 512 Hz / 640 Hz (frequency must be determined at purchase)
Pressure tightnessUp to max. 1 bar
Optional accessories Auxiliary lights RAL130, RAL200, RAL1000-RCX90, RAL1000-DSIII; camera PTP70II; camera RCX90; camera RAC50; elevator RED200; carrier RCR1000; adapter for egg-shaped pipe; fisheye camera DSIII; laser ring for DSIII
Power supplyVia cable reel RAX500, RAX300, RMX200 or ERMX100
Protection classIP68 up to 10 m water depth
Ambient temperature range0°C – 40°C
Storage temperature range0°C – 40°C
MaterialAluminum, anodized
Dimensions (L × W × H)310 × 110 × 90 mm
Weight6 kg
Key features
  • Powerful six-wheel drive (steerable)
  • Location transmitter can be activated
  • Crawler wheels for all surface conditions
  • Constant monitoring by pitch and roll sensor
  • Constant monitoring of internal pressure and temperature
  • Integrated backeye camera
  • Optional automatic elevator
  • Optional carrier
  • Optional auxiliary light
  • Compatible with the SUPERVISION® (PAL) Inspection System (as of version 2012) and PAL video format
  • Optionally available as EX version
