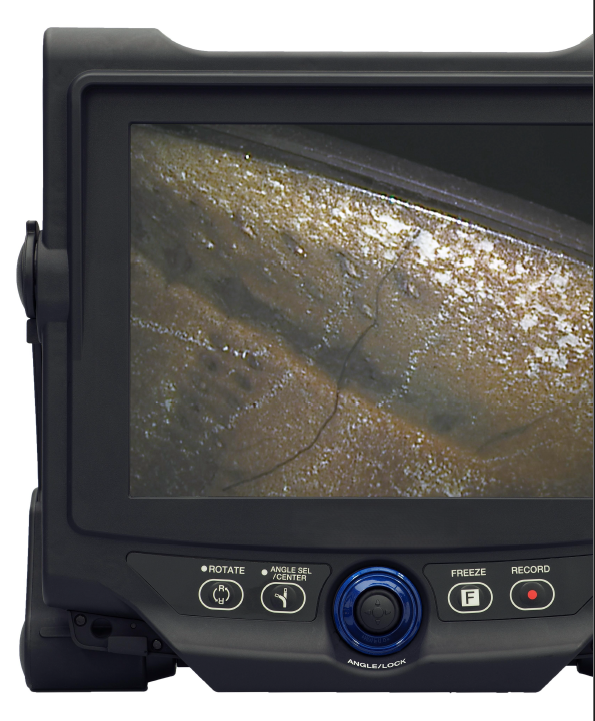

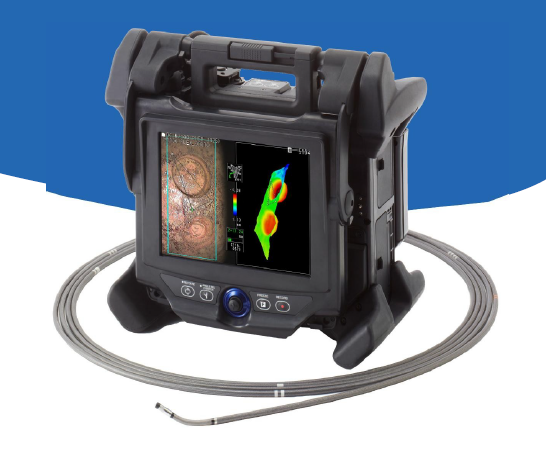

Evident’ IPLEX NX combines the high-quality images available in a videoscope with an intuitive user interface, ergonomic design, and durability for efficient inspections in any environment. With clear, bright images and powerful measurement features, the IPLEX NX is built to exceed your expectations.
The IPLEX NX is engineered to deliver high-resolution images. Its reliable image quality enables users to clearly identify trouble spots and defective areas, so inspectors can make correct judgments involving crucial systems and technologies.
SCOPE UNIT |
|||||||
|---|---|---|---|---|---|---|---|
| Model No. | IV9435N | IV9450N | IV9635N | IV9650N | IV9675N | IV9635X1N | |
| Insertion tube | Scope diameter | φ4.0 mm | φ6.0 mm | φ6.2 mm | |||
| Scope length | 3.5 m | 5.0 m | 3.5 m | 5.0 m | 7.5 m | 3.5 m | |
| Exterior | – | High – durability tungsten braid | |||||
| Tube flexibility | Uniform stiffness | Tapered Flex insertion tube with flexibility gradually increasing toward the distal end | |||||
| Optical system | Field of view | Selectable by optical adaptor. Adaptor for Stereo measurement attachable | |||||
| Direction of view | |||||||
| Illumination | – | High – intensity laser diode | |||||
| Articulation Section | Articulation angle up/down/right/left |
130° | 180° | 150° | 130° | ||
| Articulation operation | TrueFeel scope tip articulation with electronic power-assisted | ||||||
BASE UNIT |
|||||||
| Model No. | IV9000N | ||||||
| Dimensions (W x H x D) | 320 x 310 x 180 mm | ||||||
| Weight | 5.4 kg | ||||||
| Approx. system weight (with battery and SDHC card) |
7.1 kg | 7.2 kg | 7.3 kg | 7.4 kg | 7.6 kg | 7.5 kg | |
| LCD monitor | 8.4-inch daylight-view, touch screen LCD, clear type | ||||||
| Input/Output Terminal | Input terminal | S-Video VGA |
|||||
| Output terminal | |||||||
| USB connector | Type A connector, Version 2.0 standards | ||||||
| Power supply | Battery: 14.8 V nominal, approx. 100-minute operating time. AC power: 100 V to 240 V, 50/60 Hz (with supplied AC adaptor) | ||||||
| Recording media | SDHC card and USB flash memory (Still image recording only) | ||||||
| Still image recording | Resolution | H768 x V576 (Pixel) | H1024 x V768 (Pixel) | H768 x V576 (Pixel) | |||
| Recording format | Compressed JPEG format | ||||||
| Video recording | Resolution | H768 x V576 (Pixel) | H1024 x V768 (Pixel) | H768 x V576 (Pixel) | |||
| Recording format | MPEG-4 AVC (H.264) format, Windows Media Player compatible | ||||||
| Stereo measurement | Distance | Distance between two points | |||||
| Point-to-line | Perpendicular distance between a point and a user-defined line | ||||||
| Depth | Orthogonal depth/height distance between a point and a user-defined plane | ||||||
| Area/Lines | Multiple point circumference and area measurement | ||||||
| 3D Modeling | Live cross section, X/Y/Z-axis rotation, 2x Color mapping mode | ||||||
| Scaler measurement | Distance between two points based on a known measurement in the same plane | ||||||
