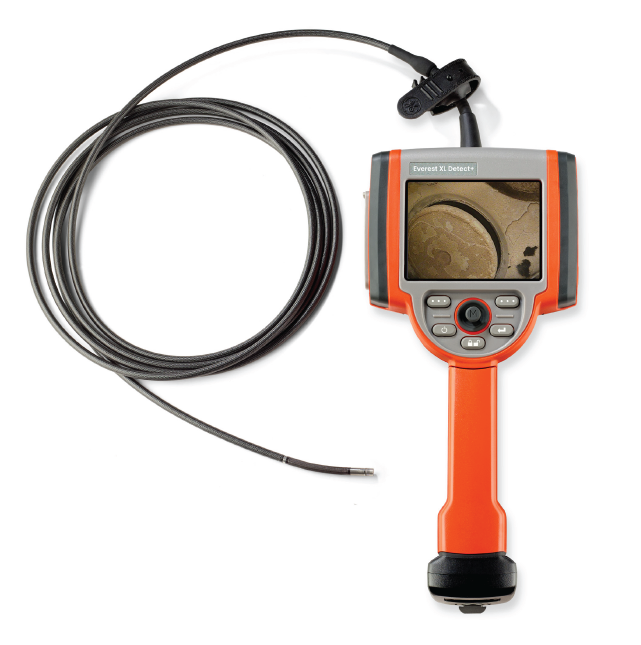

The XL Detect and XL Detect+ VideoProbes provide unmatched image quality and powerful light output to boost probability of detection (POD) and speed up workflow. Rugged durability lowers your maintenance costs and expert support from Waygate Technologies gives you peace of mind. All in a lightweight, portable, and easy-to-use device. Now featuring 16GB of memory and an upgraded 5” LCD screen on the XL Detect+.
Operating environment |
|
|---|---|
| Tip operating temp: | -25°C to 100°C (-13°F to 212°F) Reduced articulation below 0°C (32°F) |
| System operating temp: | -20°C to 46°C (-4°F to 115°F) LCD requires warm-up period below 0°C (32°F) |
| Storage temperature: | -25°C to 60°C (-13°F to 140°F) |
| Relative humidity: | 95% max, non-condensing |
| Waterproof: | Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2O, 33.5 ft of H2O) |
System |
|

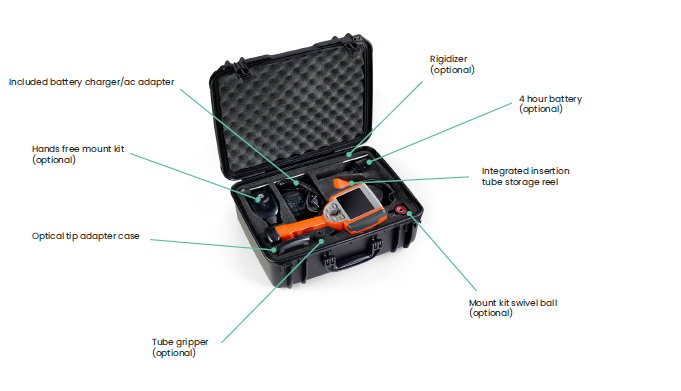

| Wheeled case: | 54.9 x 34.6 x 23.6cm (21.61 x 13.62 x 9.29in) |
| System weight: |
In case: XL Detect: 6.50 kg (14.30 lb) XL Detect+: 8.39 kg (18.5 lb) Without case: XL Detect: 1.73 kg (3.8 lb) XL Detect+: 1.98 kg (4.37 lb) |
| Power (Lithium Ion battery): | 8.4 V, 38 Wh (2 hour) 8.4 V, 75 Wh (4 hour) |
| Power supply: | AC Input: 100-240 VAC, 50-60 Hz, 1.5 A Max DC Output: 9.5 V, 6.0 A |
| Construction: | Polycarbonate housings with integrated Versalon™ (JP) bumpers |
| Dimensions: |
XL Detect: 9.53 x 13.34 x 34.29 cm (3.75 x 5.25 x 13.50 in) XL Detect+: 10.2 x 16.5 x 34.3 cm (4.0 x 6.5 x 13.5″) |
| LCD monitor: |
XL Detect: Integrated transflective 9.40 cm (3.70 in) active matrix VGA color LCD with XpertBright, 640 x 480 resolution XL Detect+: Integrated 12.7 cm (5.0) active matrix VGA color LCD, Transmissive display. |
| Joystick control: | 360° All-Way tip articulation with XpertSteer, bump gesture, menu access and navigation |
| Button set: | Access user functions, measurement and digital functions |
| Audio: | Integrated 2.5 mm headset/microphone jack |
| Internal memory: |
XL Detect: 4 GB Flash memory XL Detect+: 16 GB Flash memory |
| Data I/O ports: | Two USB® 2.0 ports |
| Video port: | VGA Video Out |
| Brightness control: | Auto and Variable |
| Illumination type: | White LED |
| Long exposure: | Via auto and manual mode |
| White balance: | Factory default or user defined |
Standards compliance and classifications |
|
| MIL-STD-810G | Tested to United States Department of Defense Environment Tests Sections 506.5, 507.5, 509.5, 510.5, 511.5, 514.6, 516.6, 521.3 |
| MIL-STD-461F | XL Detect: Tested to United States Department of Defense Electromagnetic Interference RS103 – ABOVE DECK |
| Standards compliance | Group 1, Class A: EN61326-1 UL, IEC, EN CSA-C22.2:61010-1 UN/DOT T1-T8 |
| IP rating |
XL Detect: Tested to IP55 XL Detect+: Tested to IP64 |
Camera |
|
| 4.0 mm (0.157 in) diameter probes | |
| Image sensor: | 1/10 inch Color SUPER HAD CCD camera |
| Pixel count: | 290,000 pixels |
| Housing: | Titanium |
| 6.1 mm (0.242 in) and 8.4 mm (0.331 in) diameter probes | |
| Image sensor: | 1/6 inch Color SUPER HAD™ CCD camera |
| Pixel count: | 440,000 pixels |
| Housing: | Titanium |
Software |
|
| Operating system: | Real-time multi-tasking operating system |
| User interface: | Simple drop-down menu-driven operation Menu navigation using articulation joystick |
| File manager: | Embedded file manager software supporting: File & Folder creation, naming, deleting Store to internal Flash (C:\) or USB ThumbDrive Copy between USB and C:\ |
| MDI software (optional): | Provides user defined guided inspection Creates DICONDE compatible inspection files Creates MS Word® compatible inspection reports |
| Audio data: | PC compatible (.AAC) file format |
| Image control: | Invert, Zoom (5X digital) Image Capture and Recall |
| Digital zoom: | Continuous (5.0X) |
| Image formats: | Bitmap (.BMP), JPEG (.JPG) |
| Video format: | MPEG 4 |
| Text annotation: | Built-in full screen text overlay generator Supports international language character sets 100 text line capacity |
| Graphic annotation: | User placement of arrows |
| Articulation control: | “Steer & Stay” articulation lock/fine articulation Tip “Home” return to neutral forward-tip orientation User selectable fine or coarse control XpertSteer probe articulation offers quick steering responsiveness for tight probe control – bump steering enables slight adjustments to probe position |
| Software updates: | Field updateable via USB ThumbDrive |
| Languages: | English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese, Chinese, Polish |
