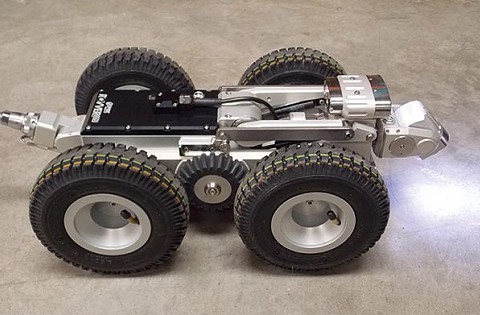

For optimum large-diameter (9–60”) pipe inspection, the Rovver 225’s pendant-controlled lift platform adjusts camera height from 6–12”. This rugged, all-wheel drive crawler moves easily over debris and around multiple turns. A remotely-operated clutch releases the wheels for free-wheeling retrieval. The Rovver 225 carries a pan/tilt, pan/tilt/zoom or forward viewing colour video camera, plus retrieval, sensing or sampling equipment to distances as far as 660’. Its modular design and ability to inspect pipes with diameters larger than 9” make it ideally suited for a range of applications. Rovver’s remote pendant enables an operator to raise and lower the camera, change camera zoom and orientation, control focus and lighting, engage the clutch and steer the crawler around obstacles such as debris and offsets. Crawler / Camera Unit 150(h) x 206(w) x 621(l)mm | 24kg Cable Reel 600(l) x5 10(h) mm | 25kg Control Unit 510(l) x 445(h) x 590(w)mm | 26.5kg Motors 2x 40 Watt DC Drive 6-wheel skid steer Drive Clutch Electric Inclination Sensor Standard +/- 10% Internal Pressure Indicator Coloured LED Construction Anodised aluminium and stainless steel Depth Rating 1 Bar / 10 metres Camera: Imager 12.7mm Colour CCD (444,000 pixels) Resolution 420 horizontal TV lines Lens 4mm, f=1.2, remote focus Focal Length 6mm to infinity Construction Stainless steel & anodised aluminium Dimensions 192 x 88 x 88mm Weight 1.5kg Cable Reel Cable Length 150 metres with motorised auto re-wind Cable Multi-conductor, 500Lb Kevlar strength member and Polyurethane outer Drum Polycarbonate slip ring cable drum
