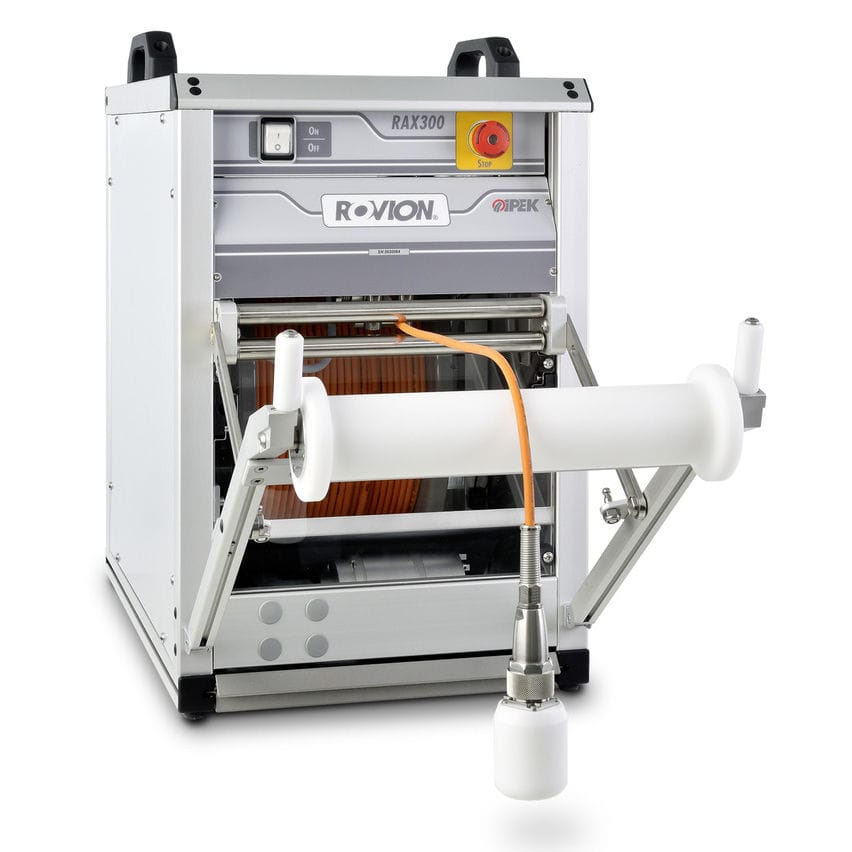

iPEK RAX300
iPEK RAX300
Automatic cable reel for the ROVION® inspection system. The cable reel holds max 300 m of armored camera cable and offers winding support. The winding speed and the pulling force is infinitely variable.
Features
Technical data — RAX300
| Drive | Motor-driven |
| Cable length | Max. 300 m |
| Meter counter | 1 |
| Integrated deflection pulley | Yes |
| Large deflection pulley | No |
| Power supply | |
| Voltage | 230 VAC / 115 VAC |
| Frequency | 50 Hz / 60 Hz |
| Electrical current | 2.5 A / 5 A |
| Fuses | — |
| Protection class | IP44 |
| Ambient temperature range | 0°C – 40°C |
| Storage temperature range | 0°C – 40°C |
| Dimensions (L × W × H) | 368 × 575 × 625 mm |
| Weight | 56 kg |
Key features
- Max. 300 m of extremely stable camera cable
- Meter counter
- Radio remote control
- Invert mode
- Winding aid
