Trusted MiniFlex Design
- Based on the established design of the MiniFlex 2
- Provides a familiar operating experience for existing users
- Introduces new digital and connectivity features without changing the core workflow
|
Intuitive Touchscreen Interface
- Modern user interface with clear icons
- Colour-coded controls simplify operation
- Integrated 8-inch touchscreen for reports and text entry
- Designed to improve the overall inspection experience
|
Draw and Highlight
- Draw directly over the live inspection image
- Highlight defects and areas of interest on screen
- Add text to clearly communicate inspection findings
- Supports the creation of professional inspection reports
|
High-Quality Media Recording
- Records photos and videos directly onto the MiniFlex 2 Pro
- Preserves the original recorded image quality
- Avoids the quality loss associated with recording a live smartphone stream
- Supports USB flash-drive recording
|

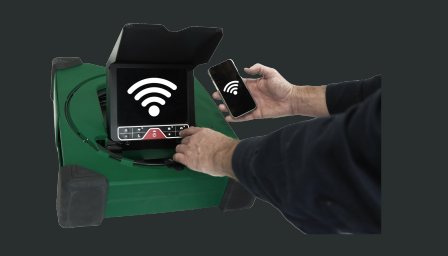

Wi-Fi File Transfer
- Built-in Wi-Fi hotspot for smartphone connectivity
- Transfers photos and videos after the inspection
- Supports lossless media transfer
- Files can be saved, shared or added to inspection reports
|
Live View and Remote Control
- Streams the live inspection view to a connected smartphone
- Allows customers and colleagues to follow inspections in real time
- Provides an alternative view when the main screen is difficult to see
- Main system functions can be controlled through the smartphone app
|
Cam19 Configuration
- Inspection range: 32–125 mm
- Passes 90° bends from 32 mm
- Camera-head diameter: 19 mm
- 105° viewing angle
- 12 mini high-power LEDs
|
Cam36 Configuration
- Inspection range: 50–200 mm
- Passes 90° bends from 50 mm
- Camera-head diameter: 36 mm
- 130° viewing angle
- Self-levelling camera and inclination meter
|
Waterproof Inspection System
- Camera and cable rated IP68 at 3 bar
- Main housing rated IP65
- Designed for pipe, drain and confined-space inspection environments
- Integrated 512 Hz transmitter in both camera configurations
|
Push-Cable Options
- Cam19 cable lengths: 15, 20, 30, 40 or 50 m
- Cam36 cable lengths: 30 or 35 m
- Cam19 cable diameter: 5.5 mm
- Cam36 cable diameter: 6.8 mm
|
Long Battery Operation
- Integrated lithium-ion battery
- Maximum operating time of up to 7 hours
- Supports extended inspection sessions in the field
- User-installable software updates on Pro models
|
Compact Portable Housing
- Dimensions: 420 × 530 × 120 mm
- MiniFlex 2 Pro Cam19 weight: 9.7 kg
- MiniFlex 2 Pro Cam36 weight: 11 kg
- Designed as an integrated portable inspection system
|
