Laser Falcon Plus

Laser Falcon Plus

Laser Falcon Plus is a lightweight laser-type remote methane gas leakage detector designed for UAV-based aerial inspections. Mounted on a fixed mount or two-axis gimbal, it provides precise methane detection with vertical stabilization and flexible sensor movement for reliable monitoring of pipelines, gas infrastructure, and industrial facilities.

Features

UAV Methane Detection

  • Lightweight laser-type remote methane gas detector
  • Designed for aerial gas leakage inspections
  • Detects methane and methane-containing gases

Precision Optical Sensing

  • Laser absorption spectrophotometry measurement principle
  • Detection range from 1 to 99,999 ppm × m
  • Detection distance from 10 to 80 m

Fast Sensor Response

  • Ultra-fast sensor response time
  • 0.04 s response in fast mode
  • 0.1 s response in normal mode

Stabilized Mounting

  • Vertical stabilization mode for NADIR positioning

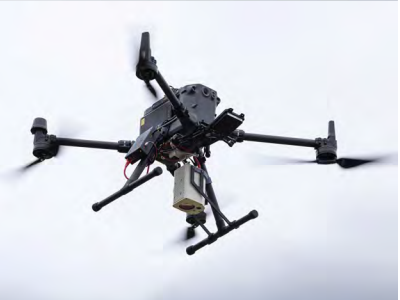

  • Two-axis gimbal or fixed mount installation
  • Sensor tilts left and right within ±30° range

Drone Integration

  • Robust mounting solutions for various UAV configurations
  • Supports vehicle speeds up to 100 km/h
  • 12 VDC power supply

SkyHUB Software Support

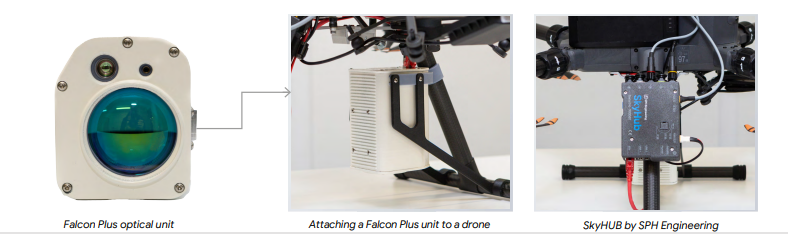

  • Includes SkyHUB by SPH Engineering in the standard package
  • Stores detection data and GPS leak positions
  • Processing software generates reports with Google Maps

Compact and Lightweight

  • Optical unit weighs 360 g
  • Unit with gimbal weighs 570 g
  • Compact unit size of 130 × 98 × 98 mm

Reliable Operation

  • Self-calibrating with integrated reference cell
  • Operating temperature range from -17 °C to +50 °C
  • Minimum detection limit of 1 g/hr

Safety and Connectivity

  • Measurement infrared laser light: Class 1
  • Guide green laser light: Class 3a
  • 12 V power cable and 4-channel Ethernet communication cable
