Permanent Magnetic Yoke
- Cable-connected permanent yoke for magnetic particle inspection
- Designed for restricted and complex inspection configurations
- Maintains performance required for standard MPI work
|

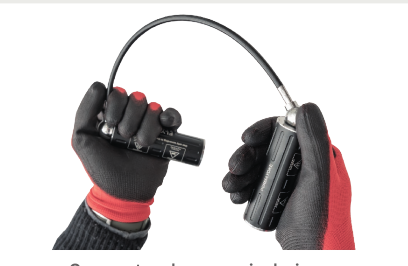

Flexible Magnetic Circuit
- Dual pole assemblies connected by a flexible magnetic cable
- Pivoting magnetic circuit with ball-joint articulation
- Multi-axis cable articulation for easier positioning
|

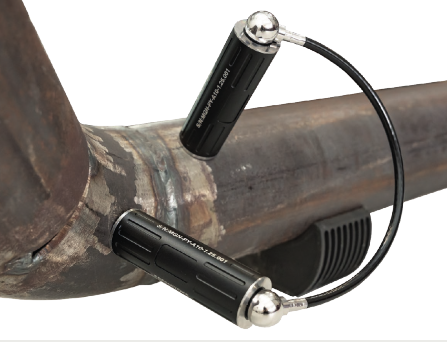

Free Pole Alignment
- Allows magnetic poles to align naturally with complex geometries
- No cable-induced interference
- Reduces parasitic forces during inspection setup
|
Verified Lifting Force
- Lifting force greater than or equal to 22.7 kg / 50 lb
- Factory-verified lifting performance
- Verified at 150 mm pole face separation in flat configuration
|
Compact and Ergonomic Design
- Compact footprint for confined inspection areas
- Comfortable handling during field or workshop use
- Storage dimensions: 110 × 210 × 30 mm
|
Durable Construction
- Built from anodized aluminum and magnetic stainless steel
- Durable materials for long service life
- Lightweight 0.8 kg construction
|
Pole Configuration
- Pole diameter: Ø30 mm
- Pole height: 93 mm
- Maximum pole spacing: 300 mm in flat configuration
|
MPI Standard Compliance
- ASTM E709 / E1444
- ASME Section V, Article 7
- MIL-STD-1949A
- Other MPI standards
|
Inspection Use Notice
- MPI performance depends on material properties and surface condition
- Geometry and inspection procedure may affect field sensitivity
- Operator should verify sensitivity according to applicable standards
|
