MGN-PY-A20

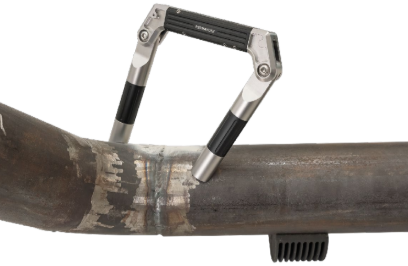

MGN-PY-A20 PERMAYOKE A20 is a permanent magnetic yoke designed for magnetic particle inspection in hard-to-access areas where electromagnetic yokes are impractical or not permitted. Its foldable articulated arms, ergonomic one-hand design, and factory-verified ≥22.7 kg / 50 lb lifting force make it suitable for reliable MPI inspections on flat, curved, and complex surfaces.

Contact Us

Download brochure ⬇

MGN-PY-A20
MGN-PY-A20 - Image 2
MGN-PY-A20 - Image 3
MGN-PY-A20 - Image 4
Features

Permanent Magnetic Yoke

  • Designed for magnetic particle inspection applications
  • Ideal for hard-to-access inspection areas
  • Suitable where electromagnetic yokes are impractical or forbidden

Foldable Design

  • Foldable yoke arms for compact storage
  • Easy to transport between inspection locations
  • Folded dimensions: 185 × 78 × 26.5 mm

Articulated Poles

  • Free alignment on flat and curved surfaces
  • Improved contact on complex geometries
  • Pole spacing: 160 mm center-to-center in flat configuration

Verified Lifting Force

  • Lifting force greater than or equal to 22.7 kg / 50 lb
  • Factory-verified lifting performance
  • Verified at 150 mm pole face separation in flat configuration

Ergonomic Handling

  • Ergonomic handle design
  • Comfortable one-hand operation
  • Practical for field and workshop inspections

Durable Construction

  • Robust materials for long service life
  • Made from anodized aluminum and magnetic stainless steel
  • Weight: 1.6 kg

Technical Configuration

  • Type: permanent magnet yoke
  • Magnetic circuit: articulated yoke arms
  • Pole diameter: Ø25 mm

Standard Compliance

  • ASTM E709 / E1444
  • ASME Section V, Article 7
  • MIL-STD-1949A
  • Other MPI standards

Inspection Use Notice

  • MPI performance depends on material properties and surface condition
  • Geometry and inspection procedure may affect field sensitivity
  • Operator should verify field sensitivity according to applicable standards
