PTP50 HD
PTP50 HD

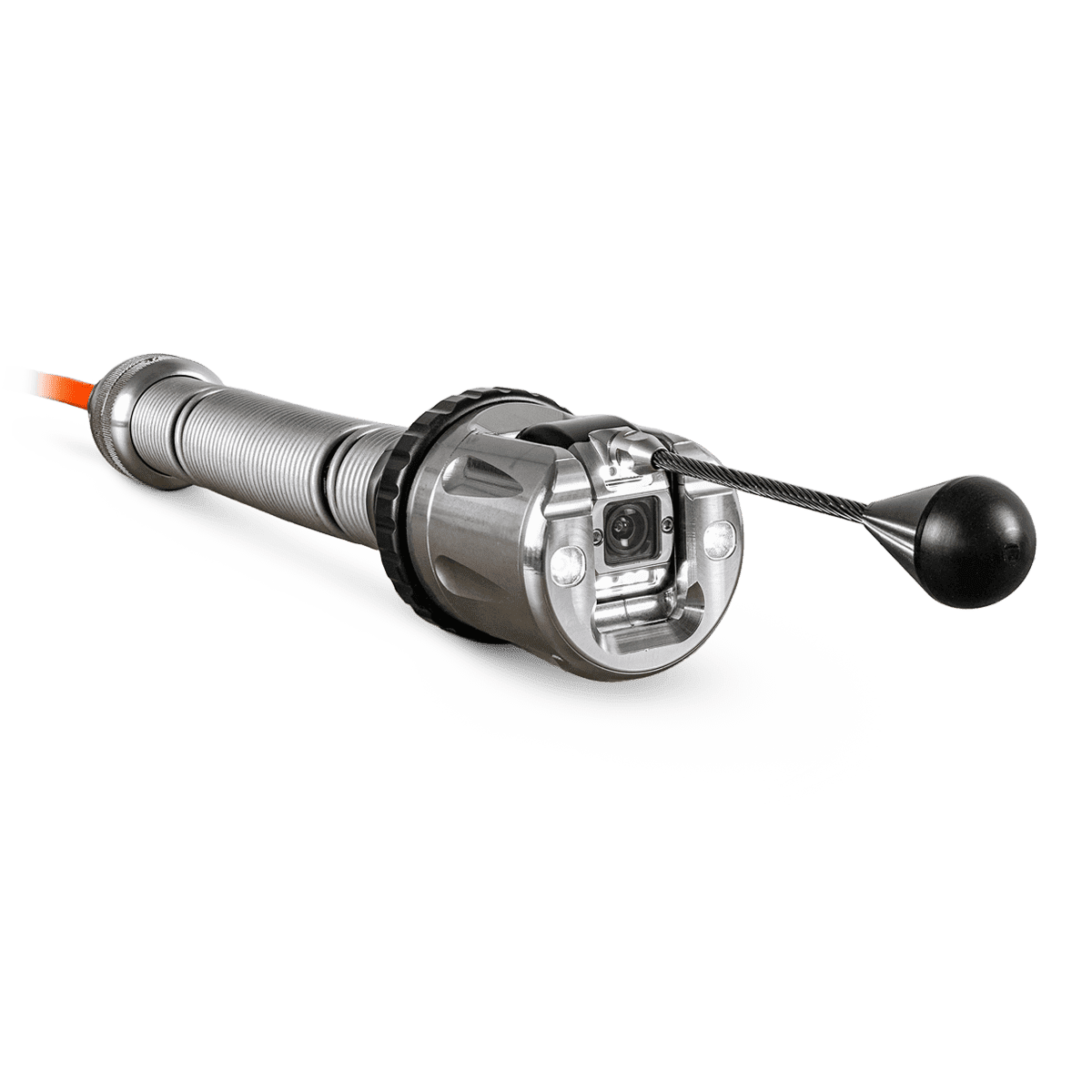

PTP50 HD pan and tilt camera for the AGILIOS HD push camera system has an application range that starts at DN60. The camera provides an endless rotation and a large panning range. The camera is characterized by its high-grade, robust design and superior optical capabilities.
Features
Technical data — PTP50 HD
| Normal pipe widths | DN60 – DN300 |
| Pipe bend mobility | Starting at DN75/90° |
| Push operation | Yes |
| Crawler operation | No |
| Pressure tightness | Up to 1 bar |
| Viewing range | −55° to +152° |
| Panning range | −26° to +122° |
| Rotation range | Endless |
| Illumination | LED illumination |
| Angle of view | 2ω (D/H/V) 90°/80°/44° |
| Focus | Endless |
| Resolution (horizontal) | 1920×1080px (Full HD) |
| Aperture control | Automatic |
| Light sensitivity | 2.0 Lux |
| Upright picture | Yes (in axial view) |
| Location | 512 Hz / 640 Hz / 33 kHz (activation optional, variable frequency) |
| Laser pointer | Yes |
| Distance laser | 21 mm |
| Internal pressure sensor | Yes |
| Angle sensor for panning | Yes |
| Angle sensor for rotation | Yes |
| Protection class | IP68 up to 10 m of water depth |
| Ambient temperature range | 0°C to 40°C |
| Storage temperature range | −20°C to 70°C |
| Material | Stainless steel |
| Dimensions (Ø×L) | 49 × 280 mm (incl. spring connector) |
| Weight | approx. 0.98 kg |
Advantages at a glance
- Rotation and pan unit integrated in the camera head
- Backwards view into connecting pipelines when inspecting water flow direction
- Strong, homogeneous illumination via adjustable LED illumination
- Sturdy, high-strength stainless steel housing protects against wear
- Scratchproof, replaceable camera front glass (sapphire glass)
- Upright picture (in axial view)
- Integrated laser to measure diameter and crack width
- Multi-frequency location transmitter can be activated or switched
- Full HD resolution
- Large angle of view
- Focus mode
- Compatible with the AGILIOS HD push camera system
- Optional EX version available
Compatible with
- AGILIOS HD
- VC500 HD control panel
- DCX5000 HD control panel via RasCon (in preparation)
- VisionReportAPP
Not compatible with
- AGILIOS AR, XR
- ROVION Crawler
- SAT-Crawler RX140SAT I, II and HD
- VC200, VC500 control panel
- DCX5000 control panel
