iPEK VC500 HD – Mobile control unit for AGILIOS & ROVION (Full-HD workflow)

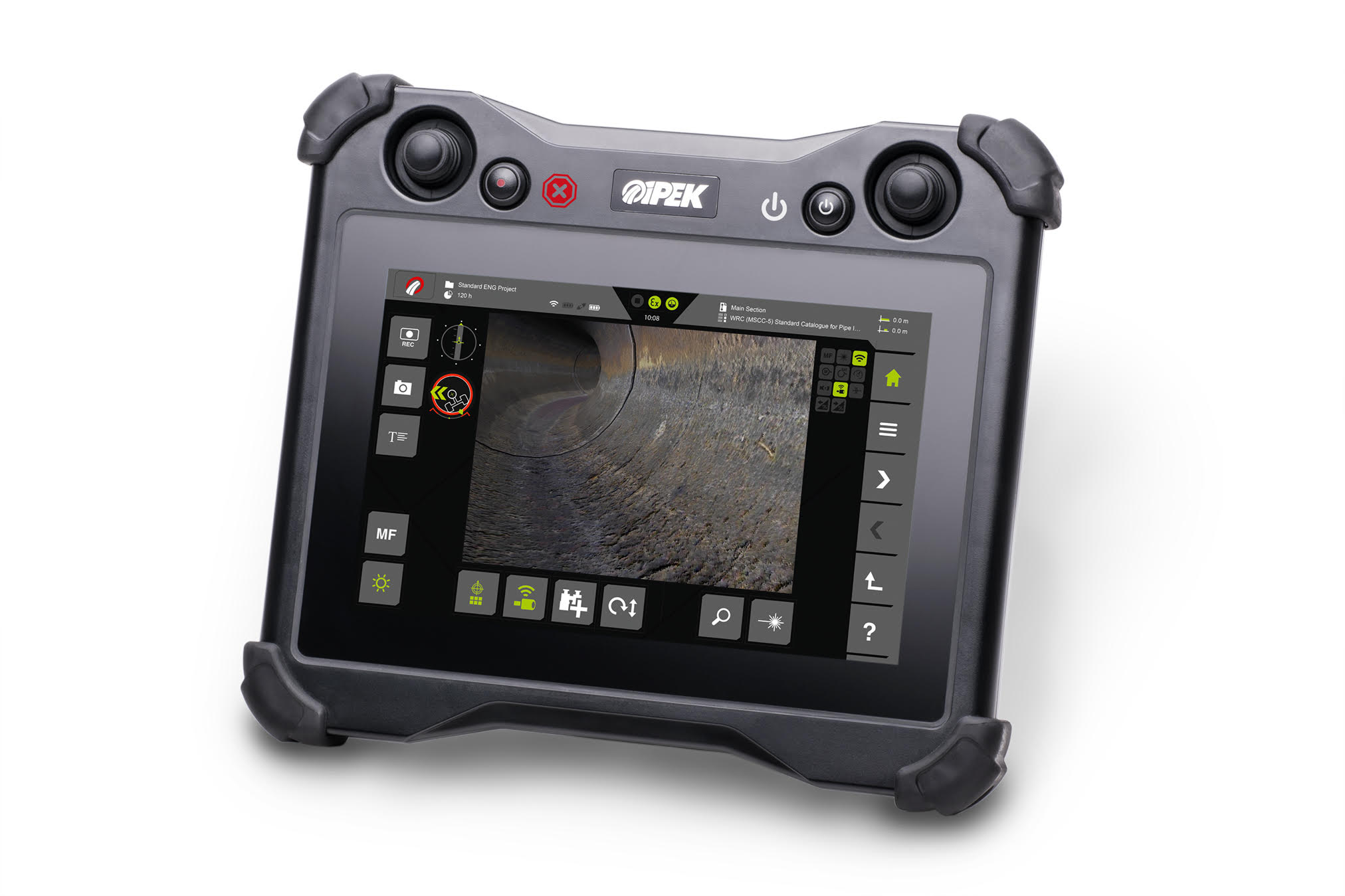

The VC500 HD is iPEK’s portable operator panel for AGILIOS push-rod and ROVION crawler systems. A sunlight-readable 10.1″ multi-touch display, twin joysticks and integrated recording/reporting make it easy to run inspections, capture evidence, and hand over standards-compliant reports on site.
Features
Technical data — VisionControl VC500
| Display type | TFT (2-fingers multi-touch) |
| Display format | 16:10 |
| Display size (diagonal) | 10.1″ / 257 mm |
| Display resolution | 1280 × 800 px |
| Display brightness | 1280 cd/m² |
| Viewing angle (hor./vert.) | 150° / 150° |
| Interfaces |
2 × USB 2.0 (type A) 1 × Ethernet (RJ45) 1 × HDMI 1 × analog Video OUT (BNC) 1 × Wi-Fi |
| Internal memory | 32 GB |
| Video / picture format | Mpeg4 AVC/H.264 / JPG or PNG (selectable) |
| Power supply | Through coiler / cable reel |
| Protection class | IP55 |
| Ambient temperature range | 0°C – 40°C |
| Storage temperature range | −30°C – 70°C |
| Material | Plastic (ABS+PC) |
| Dimensions (W×H×D) | 300 × 267 × 70 mm |
| Weight | Approx. 1.8 kg (without coiler cable) |
Key features
- Multi-functional, portable control panel
- Basis for operating software VISIONREPORT II with “WinCan Embedded Reporting”
- User-friendly interface with innovative touch and gesture controls
- Modularly expandable software
- Standard-compliant inspections via integrated inspection catalogs
- USB, Ethernet and Wi-Fi interfaces for easy import/export of project and inspection data
- Cloud connection (WinCan Web) for quick, location-independent exchange of data via the internet
- Configurable text overlay function
- Robust, daylight-readable high-resolution touchscreen
- Two 2-axis joysticks with push function for precise crawler/camera control
- Operation via USB keyboard & mouse possible
- External mains adapter for operating the control panel at a desk
- Low weight and ergonomic design with integrated, foldable stand
- Compatible with ROVION and AGILIOS inspection systems
